1. Principle of PSA Nitrogen Generator
The PSA Nitrogen Generator is an air separation unit which is based on molecular sieves selective adsorption of oxygen from air and can continuously generate gas nitrogen with purity as 99.999%, and the adsorbed nitrogen can be desorpted by decreasing the adsorbed bed pressure resulting cyclical adsorption-desroption operation.
2. Features of PSA Nitrogen Generator
The advanced technology and unique air flow distributor, it let the air flow distribution more uniform. And because of the efficient usage of Carbon Molecular Sieve,around 20mins later we can get the qualified nitrogen.

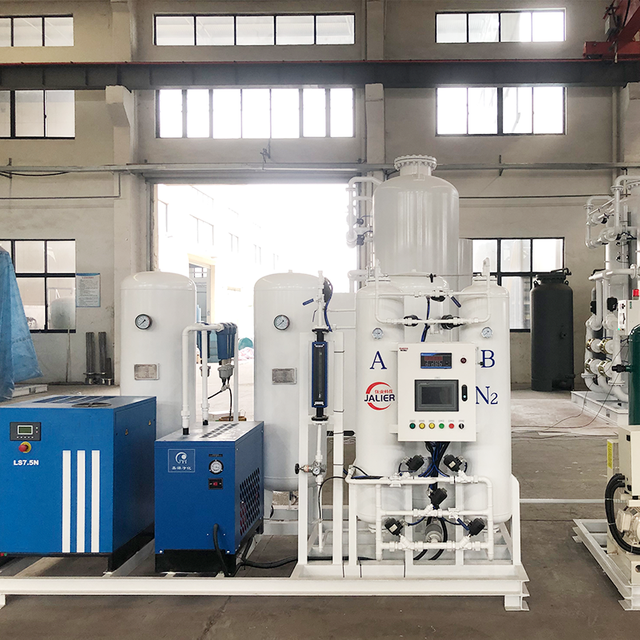

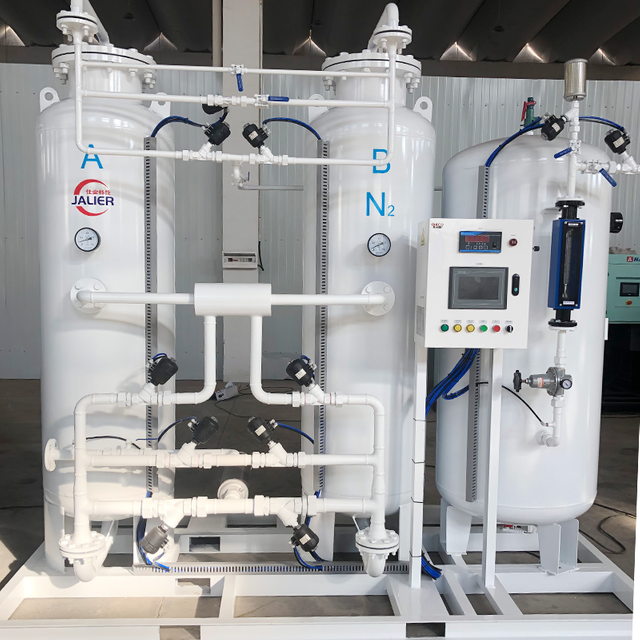

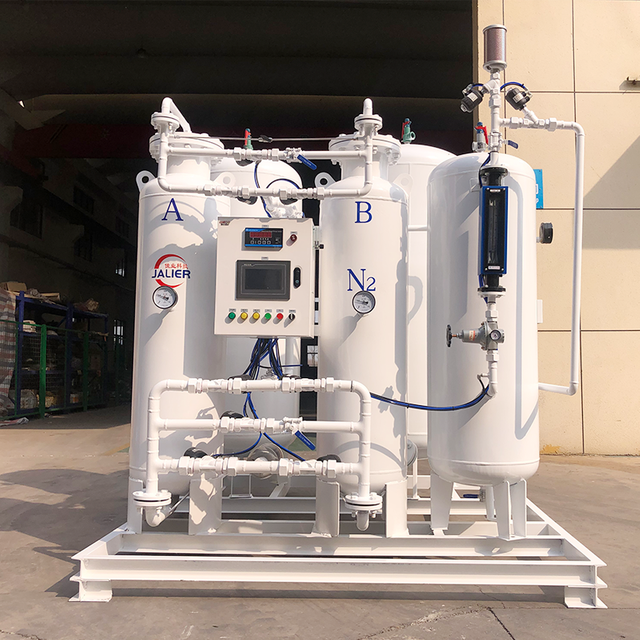

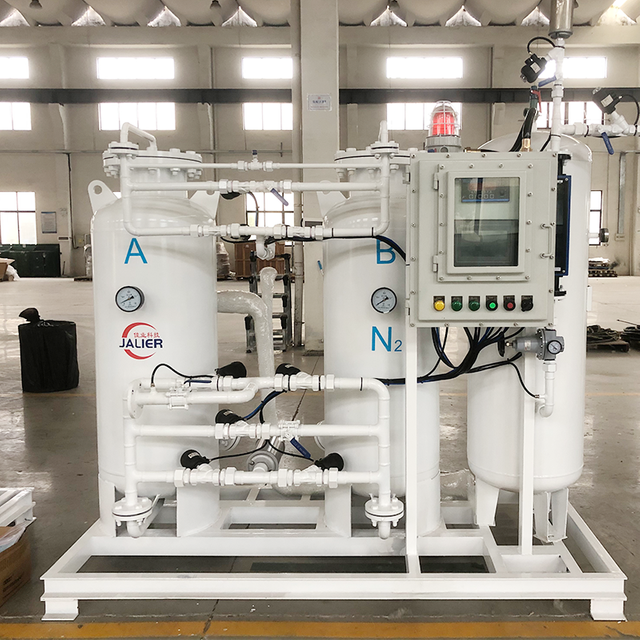

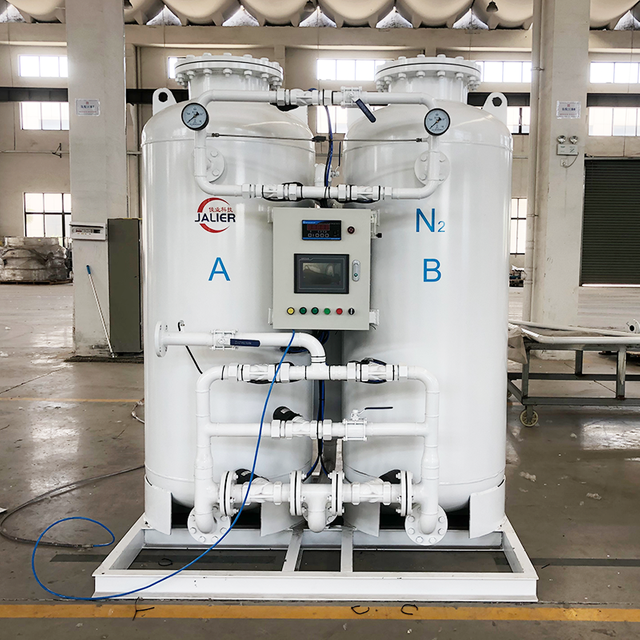

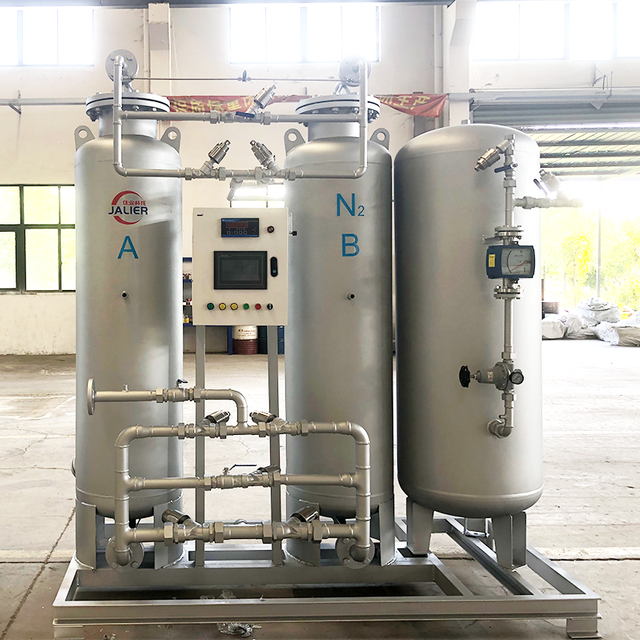

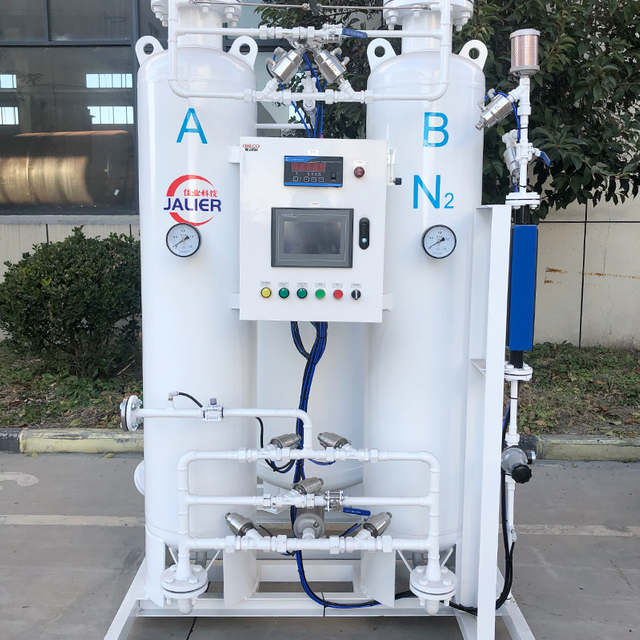

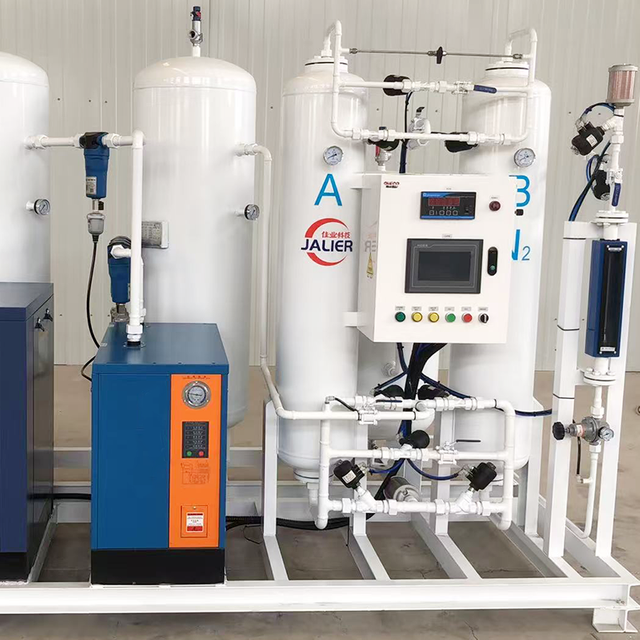

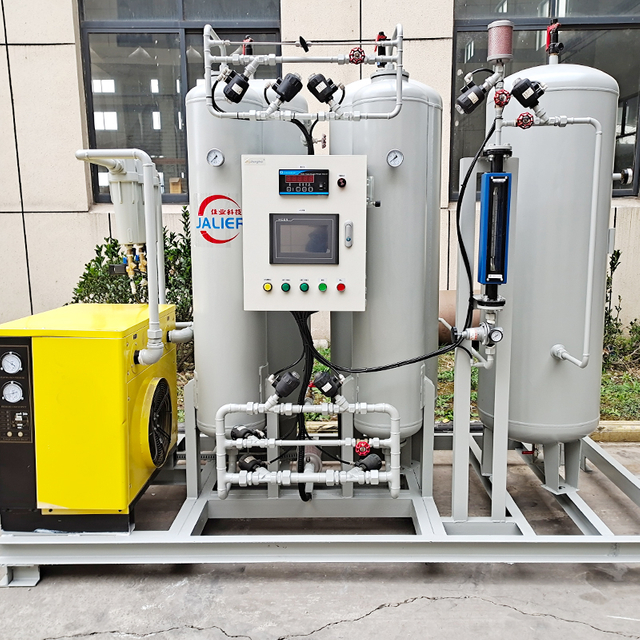

Our nitrogen generator is designed compactly by Skid mount package. When received all machines, just need to connect all pipes, then can start our nitrogen genertaor working. And all equipments floor space is small area without any investment of capital construction. And the investment is less, the field only need to connect the power, then our nitrogen generator can start to produce nitrogen gas. Even our some customers request to install it in the container, then it will be more easy to operate our nitrogen generator.
PSA process is one simple nitrogen production method. It use air as raw material, the mian energy consumption is only the electric energy consumed by the air compressor with the advantage of low operating cost & low energy consumption & high efficiency.
We use the imported Siemens PLC control system. It can control all nitrogen generator production system to operate automatically. The nitrogen flow rate and purity can be adjusted and display continuously. All our valves is magnetic valve which is also controlled by the PLC, so no need some workers to control it handly.
3. Technical parameter of PSA Nitrogen Generator:
Capacity: 5-5000Nm3/h
Purity: 95%-99.9995%
Dew point: ≤-45℃
Pressure: ≤0.6Mpa adjustable
4. Application of PSA Nitrogen Generator:
The nitrogen generator is suitable for oil and natural gas extraction. Because the nitrogen gas is one inert gas, so the nitrogen gas can protect & transport & cover & replace & rescue & maintenance & nitrogen injection when do oil or natural gas extraction. It has the characteristics of high safety, strong adaptability and continuous production.
The nitrogen generator is suitable for petrochemical industry, coal chemical industry, salt chemical industry, natural gas chemical industry, fine chemical industry, new materials and its extension chemical product processing industry. The nitrogen is mainly used for covering, purging, replacement, cleaning, pressure transportation, chemical reaction agitation, chemical fiber production protection, nitrogen filling protection and other fields.
The nitrogen generator is suitable for heat treatment, bright annealing, protective heating, powder metallurgy, copper and aluminum processing, magnetic material sintering, precious metal processing, bearing production and other fields. It has the features of high purity, continuous production, and some processes require nitrogen to contain a certain amount of hydrogen to increase the brightness.
The nitrogen generator is suitable for fire prevention and extinguishing and gas dilution in coal mining. It has three specifications: ground fixed, ground mobile and underground mobile. It fully meet the demand for nitrogen under different working conditions.
The nitrogen generator is suitable for nitrogen protection and forming in the vulcanization process of rubber and tire production. Especially in the production of all-steel radial tires, the new process of nitrogen vulcanization has gradually replaced the steam vulcanization process. It has the features of high nitrogen purity, continuous production and high nitrogen pressure.
Nitrogen generator is suitable for grain green storage, food nitrogen filling packaging, vegetable preservation, wine sealing (can) filling and preservation.
Nitrogen generator is mainly used in medicine production, storage, packaging and other fields.
Nitrogen generator is suitable for semiconductor production packaging, electronic components production, LED, LCD liquid crystal display, lithium battery production and other fields. The nitrogen generator has the features of high purity, small size, low noise and low energy consumption.
